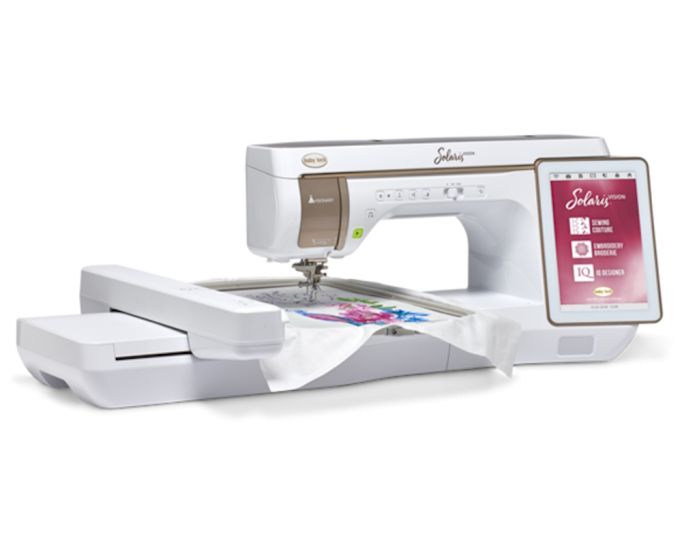

Baby Lock Solaris Vision Sewing and Embroidery Machine

Convenience Features

• Convenient One-Touch Buttons for
• Larger sewing bed and workspace with 13.1" to the right of the needle
• Frosted surface finish on machine bed
• Convenient one-touch buttons for:
• Start/Stop
• Reverse sewing
• Reinforcement key
• Needle up/down
• Thread cutter
• Automatic presser foot lift
• Automatic needle threading
• Sewing speed control doubles as width control
• Quick-Set, Top-Loading bobbin with sensor
• Quick-Set Independent bobbin winding system
• One finger removable needle plate for easy access cleaning
• Ergonomic 3-position, adjustable knee lift with extra high presser foot lift - 10mm Automatic and 13mm Manual
• Programmable 3-step needle up/down
• Adjustable volume with 5 settings
• Automatic thread cutter (with on/off capability)
• Needle plate with scale in inches and centimeters and additional guideline markings
• Free arm
• Foldable king two-spool thread stand attaches magnetically to machine lid
• Two accessory storage compartments in sewing tray
• Enhanced Accessory Storage Box with 3 interchangeable trays
• Built-in Instructions and Reference Manual
• Built-in Operational Guide with up to 40 help topics
• 48 built-in videos
• Built-in Sewing Application Guide
• Built-in Help Messages
• Embroidery Stitch Count System – SCS
• Capability to save settings screen images
• Your Solaris will stay current with future upgrades/updates via USB or WLAN connection
• Language conversion capabilities (12 languages)
• Machine Hoop required space clearance 32" from front to back
• Warranty (25 years limited, 10 years parts, 5 years computer circuit, 5 years electrical, 1 year labor)

• Technology Features

  • 1514 Built-in stitches including
  • 184 Utility including 15 one-step buttonhole styles and 1 four-step custom buttonhole
  • 527 Decorative
  • 79 Decorative satin
  • 20 Satin
  • 21 Cross
  • 63 Combinable Utility stitches
  • 3 Hand-look Quilting
  • 20 Tapering stitches
  • 4 Built-in alphabets
  • 40 Quilting stitches offer 57 needle position options
  • Stitch length 0.0mm - 5.0mm
  • 2 Basting stitch options: Regular 5mm and free-motion
  • Maximum Utility stitch width 7mm
  • Utility stitch editing capabilities
  • 5 Memory settings for each Utility stitch
  • Decorative stitch editing capabilities
  • Sew Utility and Decorative stitches while embroidery arm is attached
  • Specify end-point for stitch line with capability to end with a completed pattern
  • Stitch taper for specifying start and end angles of a select category of stitches
  • Dual Feed Foot
  • Automatic drop feed on screen
  • Lock key for Utility and Decorative stitches
  • Reinforcement priority settings
  • Lateral and diagonal feeding
  • Variable needle positions
  • Fully automatic built-in darning
  • Twin needle settings

  Included Accessories

  • Knee lift
  • Dual Stylus and Holder
  • Fine-tipped stylus
  • Adjustable knee lifter with 3-position handle
  • Advanced multi-function foot controller
  • 17 Presser feet
  • 1/4″ Quilting foot with a guide
  • Blind stitch
  • Button fitting
  • Camera Detecting Buttonhole with stabilization plate
  • Couching Dual Feed Sole
  • Compact Digital Dual-Feed System
  • Embroidery foot “W”
  • Embroidery couching Y
  • Free-motion echo
  • Free-motion open toe quilting
  • Free-motion quilting
  • General purpose zigzag
  • Advanced monogramming N+
  • Overcasting
  • Straight Stitch
  • Zipper
  • Easy-lock accessory case for presser foot storage with 3 interchangeable trays
  • 2 Thread king spool stand for larger cones
  • Straight stitch needle plate
  • Bobbin case and cover for embroidery
  • Bobbin Covers with and without markings
  • Alternate bobbin case for use with pre-wound bobbins
  • Bobbin center pin
  • Embroidery bobbin thread
  • Bobbins
  • Embroidery Positioning Stickers (2 Sheets)
  • White needle calibration stickers
  • Multi-position screwdriver
  • Presser foot adaptor
  • Seam ripper
  • Scissors
  • Eyelet Punch
  • Spool nets (2)
  • Foot control
  • Twin needle
  • Scanning frame with magnets
  • Embroidery hoops
  • 10-5/8″ x 16″ (272mm x 408mm)
  • 10-5/8″ x 10-5/8″ (272mm x 272mm)
  • 5″ x 7″ (130mm x 180mm)
  • 4″ x 4″ (100mm x 100mm)
  • Yarn guide for sewing couching
  • Yarn guide for embroidery couching
  • Yarn threader
  • End-point stickers (4 sheets, 243 stickers per sheet)

  Embroidery Capabilities

  • 901 built-in embroidery designs
  • 355 Baby Lock exclusives
  • 5 Sewlebrity designs
  • 15 Buttonhole embroidery designs in 5 sizes
  • 15 Buttonhole embroidery frame designs
  • 244 Large decorative stitch designs
  • 30 Quilting Border Patterns in 3 categories
  • 40 Couching patterns
  • 5 Large-connect designs
  • 10 Motif designs
  • 10 Long-stitch designs
  • 6 Large applique designs
  • 140 Frame combinations
  • 38 font styles
  • Embroiders up to 10 5/8" x 16" (272mm x 408mm) embroidery field
  • 10 5/8" x 16" hoop has new locking mechanism and silicone side grips for slip-free fabric support
  • Memory capacity approximately 10MB
  • Reads embroidery designs with a stitch capacity of up to 750,000 stitches per design and 127 color changes
  • Color Visualizer with favorite color selections
  • WXGA IPS TFT Color LCD Touch Screen showing numerous features
  • 9-Point trial to check position
  • Starting point key for instant alignment of characters or patterns
  • Alternate bobbin case for pre-wound bobbins
  • Customize embroidery pattern and thumbnail background colors (66 options)
  • On-screen grid
  • Cuts jump stitches (with on/off capability)
  • Embroidery frame clearance setting for easy bobbin changes
  • Embroider without removing the foot control
  • Compatible with optional W+ Needle Beam Foot and mouse
  • Combine embroidery designs on screen
  • Character/text array function
  • Character spacing
  • Multi-line text with justification options
  • Character insert and group edit capabilities
  • Change fonts on letters or words after the design is set
  • 0.1°, 1°, 10°, and 90° pattern rotation
  • Enhanced design enlargement (up to 200%) and reduction (down to 60%) capabilities
  • Design duplication
  • Multiple design selection capabilities
  • Automatic appliqué
  • Automatic basting
  • Add automatic stippling, echo stitching, and decorative fill patterns around embroidery designs
  • Mirror imaging
  • Change color selections within designs
  • Enhanced color sorting to optimize sewing order
  • Monochrome option for embroidery designs
  • Programmable custom thread color selection
  • 14 Major thread brands color palettes built-in
