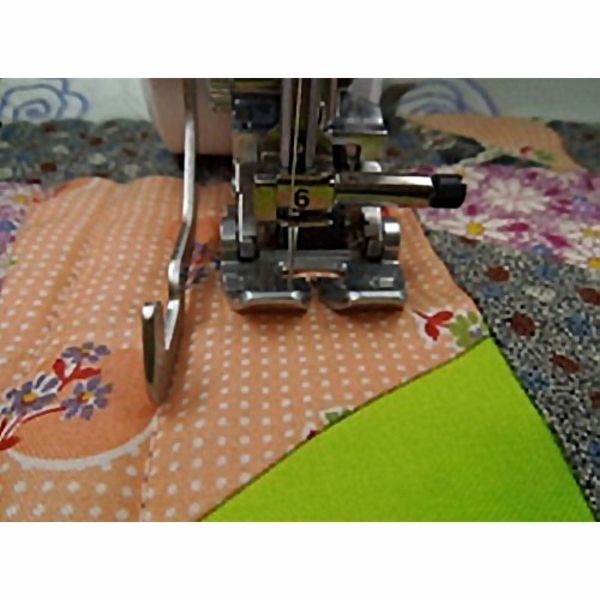

Brother SA206 Dual Feed Quilting Guide

This Dual Feed Quilting Guide helps you stitch straighter lines, and is designed specifically for use with the MuVit(tm) Dual Feed Foot device (sku #SA196, available for separate purchase, and included in the XV8500D, VM6200D, VQ3000 and VQ2400). Included are a Right Guide and a Left Guide that are both adjustable up to 2 3/8" from the center needle position. Also included are a quilting guide base and screw.

For Use With: Dream Machine XV8500D, DreamCreator™ VQ2400, DreamCreator™XE VM5100, DreamWeaver™ VQ3000, DreamWeaver™ XE VM6200D

Also compatable with Babylock Aria.

Remove Existing Foot & Shank: Use a screwdriver to loosen and remove the screw holding the presser foot holder (the shank) to the presser bar. Remove both the holder and the currently attached presser foot.

Position the Walking Foot: Place the SA206 walking foot onto the presser bar from the back.

Hook the Lever: Ensure the forked lever on the SA206 (the hook) sits directly over the needle clamp screw (the needle holder) on the right.

Secure with Screw: Reinsert the presser foot screw and tighten it securely with a screwdriver.

Verify: Manually turn the handwheel toward you to ensure the needle clears the foot properly and the foot lifts and lowers with each stitch.
