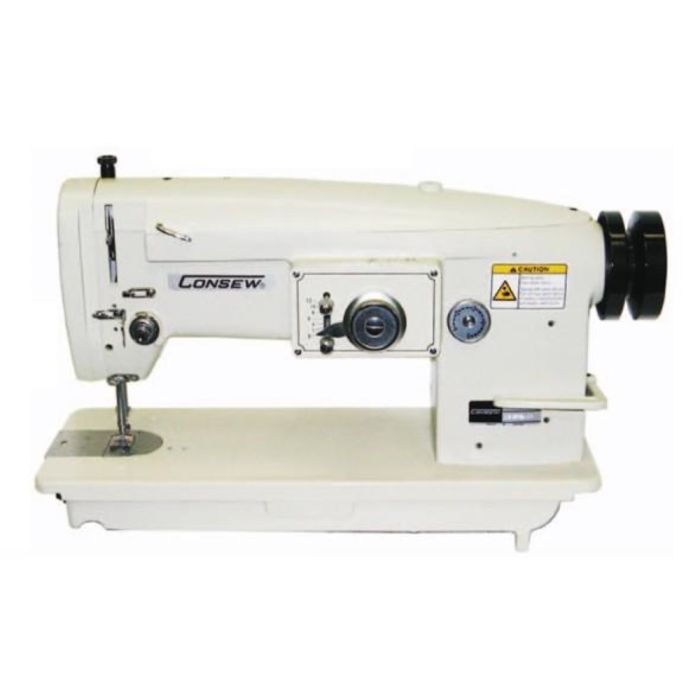

Consew 199RB-2A-1 Single Needle Drop Feed Zig-Zag Lockstitch Industrial Sewing Machine With Table and Servo Motor

In stock

Consew 199RB-2A-1 Single Needle Drop Feed Zig-Zag Lockstitch Industrial Sewing Machine Comes With Table, Legs, Servo Motor and LED Lamp

Horizontal Axis Transverse Rotary Hook, Reverse Feed, Combination Zig-Zag and Straight Stitcher


  • Three step/two stitch zig-zag Federal stitch 308
  • For sewing elastic and other stretch materials, as well as for ornamental stitching
  • For stitching such products as boat and truck covers, tents, awnings sails, parachutes, tarapaulins, canvas bags, also many items of military and naval equipment
  • Used on such materials as canvas, nylon, vinyl, leather, synthetics and similar materials
  • Especially desierable where reinforced stitch is necessary
  • Also available with special fittings for rope tacking operations
  • Used for rope tacking, making loops in rope and attaching small and medium size ropes to such products as truck covers, tents, sails, hammocks, parachutes, grain bags and many items of military and naval equipment


  • Horizontal axis transverse rotary hook
  • Maximum width of zig-zag: 3/8" (9.5mm)
  • Straight stitcher when zig-zag is set to 'O' mm
  • Long arm with 10" free space between needle and arm (all 18 7/8" bed models)
  • Locking zig-zag width regulator
  • Reverse stitching
  • Special fittings available for rope end and rope loop stitching
  • With large bobbin and horizontal axis transverse rotary hook
  • Optional: Interchangeable between 1A, 2A & 3A stitches; Additional parts required (not included)


  • Number of Needles:  1 (Single)
  • Feeding Mechanism:  Needle Feed
  • Workspace:  Standard Workspace
  • Standard or Full Function:  Standard Functions
  • Speed, Max (S.P.M.):  Zig-Zag 2000
    Straight 2000
  • Clearance Under Presser Foot: 15/64" (6mm)
  • Stitch Length:  5 s.p.i. (5mm)
  • Work Space:  10" (258mm)
  • Needle: 135 x 17
  • Bobbin: Metal 212O34-312 Pre-wound M
  • Needle Bar Stroke:  1-11/32" (34mm)
  • Bed Size: 7" 18 7/8" (178m x 480mm)
  • Hook: B70
  • Zig-Zag Stitch Width:  3/8" (9.5mm)


  • They use up to 90% less power than clutch motors
  • They are 1/3 lighter than clutch motors
  • With a flick of the switch you can reverse motor rotation
  • No parts to wear out or adjust.
  • No matter how hard you press the foot pedal configured speed remains the same

Because of Servo motor speed control, most users find the machine is easier to use.  Both beginning and seasoned sewers find this feature helpful when stitching projects that don't demand high-speed stitching.

More Information
Part Number 199RB-2A-1
Condition New
