• Backlit LCD screen
• Auto thread cutter
• USB memory key compatible
• ATA PC card port and USB port (Host) on RCS; USB port on MB-4S
• Compatible with Janome software
• Embroidery speed up to 800spm
• Built-in features:
• Built-in Designs: 50
• Fonts: 10
• Monogramming: 2 & 3 letter
• Expanded built-in memory
• Extra large bobbin is 1.4 times larger than a regular bobbin
• Change colors to favorite thread: Janome, Robison-Anton, Madeira, Mettler
• Drag & Drop editing for easy placement
• Embroidery design resize 80% - 120% by 1%
• Rotate in 1 and 90 degree increments (clockwise / counter clockwise)
• Flip vertically and horizontally
• Standard hoops:
• M1: 9.46" x 7.88" (240mm x 200mm)
• M2: 5" x 4.3" (126mm x 110mm)
• M3: 50mm x 50mm
• Embroidery area tracing
• My SET screen controls for contrast, in/cm, designation and other customization
• Zoom in and out
• Multi-language selection
• Stitch-out time indicator
• Stitch Counter
• Upper thread and presser foot sensors
• Manual thread tension control
• Ball bearing precision

Standard Accessories

• Bobbins
• Needle (DB x K5Q1-NY)
• Needle Threader
• Felt Ring (large)
• Felt Ring (small)
• Hoop M1 (240 x 200)
• Hoop M2 (126 x 110)
• Hoop M3 (50 x 50)
• Hoop Supporter
• Spool Caps
• Spool Net
• Spool Pin
• Spool Rest
• Spool Stand
• Lint Brush
• Thread Guide Bar
• Thread Guide Pole
• Tweezers
• Seam Ripper
• Scissors
• Offset Screwdriver
• Screwdriver (large)
• Screwdriver (small)
• Setscrew
• Accessory Box
• Oiler
• Power Supply Cable
• Instruction Book
• Instructional CD-ROM

Specifications

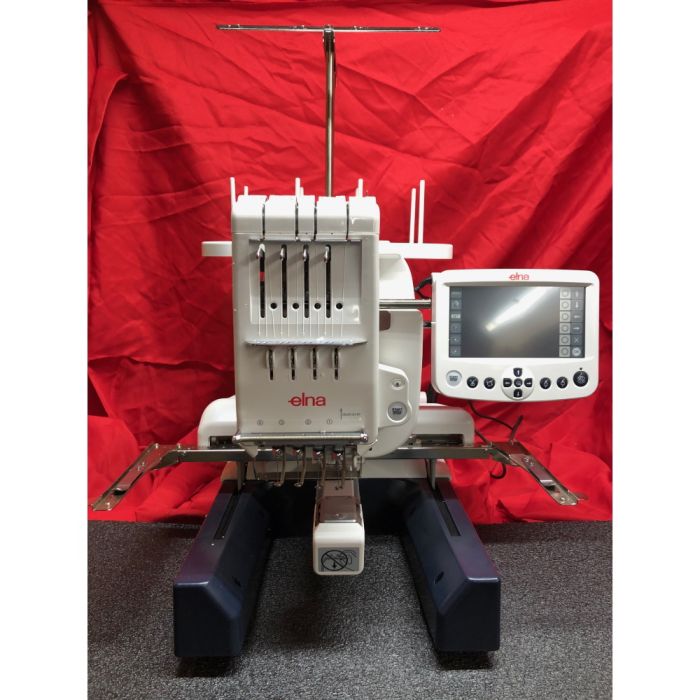

• Single head 4-needle embroidery machine
• Upper thread breakage sensor
• Extra Large Bobbin - 1.4 times larger than a regular bobbin
• Built-in auto thread cutter (needle & bobbin threads)
• Thread cutter for bobbin winding
• Needles
• Number of needles: 4
• Type of needles: DBxK5Q1NY #11
• Speed
• Maximum speed: 800 spm
• Low range speed: Up to 400 spm
• Bobbin winding speed: 2,000 rpm
• DB rotary hook (full rotary)
• Machine control: By Remote Computer Screen (option) or Sub-Control Panel
• Sub-Control Panel: LCD with backlight (H12 x W63mm)
• Lay-in thread tension (manual adjustment)
• Independent bobbin winding (with independent start button)
• Upper thread holder spring on the face plate
• Direct PC-Link
• Embroidery format compatibility: jef+/jef (Janome) & DST (Tajima)
• Control keys
• Mode key (*2)
• OK key
• 4 Jog-keys
• Forward / Reverse stitch keys
• Manual thread cutting key
• Start/Stop key (on Remote Computer Screen and Sub-Control Panel)
• Resumption setting / My Set (with Remote Computer Screen)
• 3 Hoops
• White LED x 2 sewing lamp
• Spool stand (incl. 1 for bobbin thread & 4 additional spool)
• Cylinder shape of bed
• Skeleton (clam shell) body construction
• DC motor
• Machine size: W365 x H640/(440*) x D520 mm
• Bed width: W299 x H130 mm
• Machine weight: 20.5 kg
• Packing size: W450 x H620 x D660 mm (*1)
• Gross weight (incl. packing): 29 kgs (*1)

Includes a full 1 year factory warranty.  Ken's Sewing Center provides lifetime support.
