Happy Japan HCR3 1504 4-head Commercial Embroidery Machine
In stock
Only 3 left
SKU
87114
Take your business to the next level

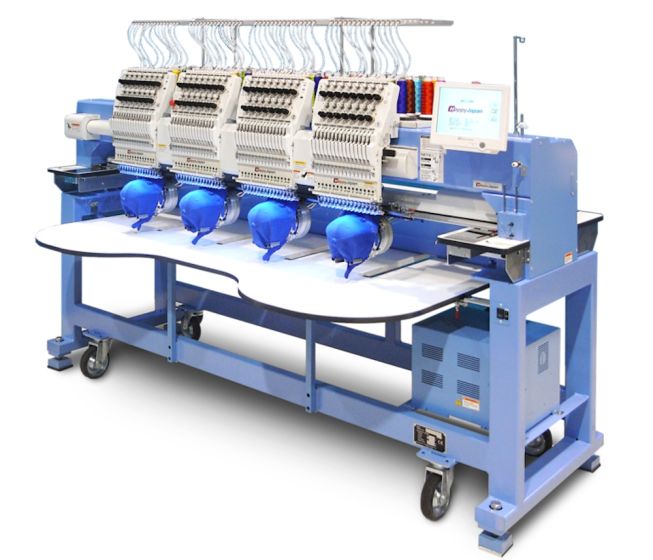

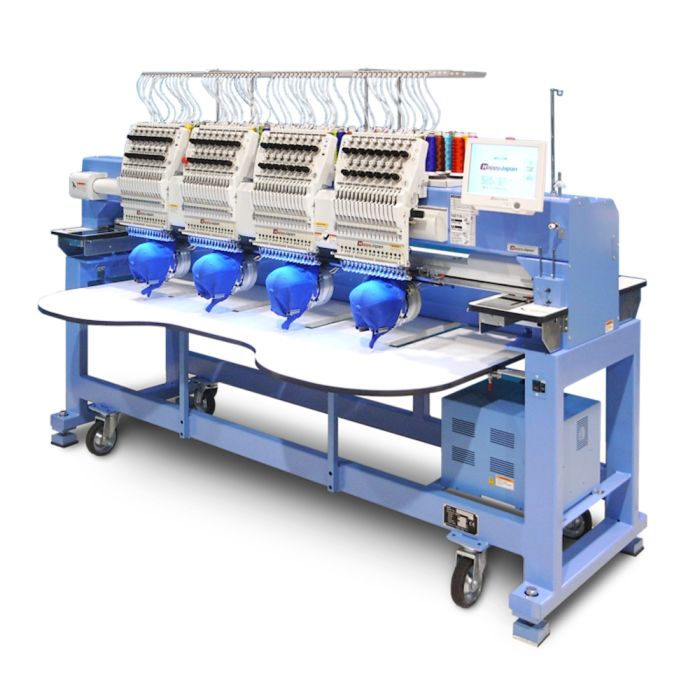

HappyJapan’s HCR3 1504 4-head commercial 4-head embroidery machine is our best-selling multi-head model.
The HCR3-1504 from HappyJapan ipacks a LOT of production power in an efficient package, putting 4 sewing heads in less than 8 feet of space! Like all Happy multi-heads, the 1504 can be run shift after shift, virtually nonstop, for days on end. HCR3 technology helps make the 1504 the strongest, most productive 4-head yet. The servo drive allows for faster, quieter sewing, and reinforced construction in many key areas for greater durability and more consistent quality on a wide variety of materials.
Standard Features:
- Color LCD touchscreen panel
- Customizable front screen apps
- USB/LAN ports for direct PC connection
- Built-in help, auto-error correction
- Combine designs & text directly onscreen
- Built-in lettering & stock designs
- Onboard editing: rotate, scalle, mirror, satin pull compensation, stitch cleanup, lockstitching
- Import any compatible 3rd-party hoop onscreen for accurate positioning
- Load, set up additional designs while machine is running
Amazing Embroidery On Ball Caps
With their precise, high-energy servo drive, HCR3 multi-heads easily handle challenging jobs on ballcaps, including 3d “puff” designs and popular, trucker-style ballcaps.-
Easy Maintenance
With easier lubrication and cleaning requirements over the competition, automatic maintenance reminders and auto-error correction, HCR3-series multihead embroidery machines are a joy to work with, providing greater productivity and potential profit and less down time.-
Easy Touchscreen Control Panel
- The large, 10.4” touchscreen control panel is intuitively laid out, requiring an absolute minimum of button presses to accomplish the most common tasks. Key functions for setting up and running designs are found on the main screen, requiring zero menu-diving. Operators love operating HCR3-series multi-heads from HappyJapan - their user-friendliness means less training, greater productivity, and less down time.
Specifications & Features
- Sewing field per head: tubular goods 14.1in wide x 17.7in deep, finished ballcaps 14.1in wide x 3.1in high
- Operating speed: 1100 stitches/min on flat goods, 1000 stitches/min on ballcaps
- Auto Mend Mode keeps each head in synch in case of thread breaks or other stoppages
- Operator login, auto reporting helps you keep track of productivity & machine health
- Memory: 100 million stitches / 3000 designs, 100 built-in stock designs
- Onboard Lettering: 12 fonts ranging from 2" tall to 1/4" tall
- Dimensions: 32.7in deep (with table removed) x 7ft6in w x 5ft 9in tall
- Power requirements: Single Phase 200-240V, 340W, 60Hz
- Weight: 1,232 lbs
Included with the machine:
- Complete tubular hoop set, 2 hoops per head:
- 8ea. 32cm (12in) square hoops
- 8ea. 18cm (7.1in) round hoops
- 8ea. 15cm (5.9in) round hoops
- 8ea. 12cm (4.7in) round hoops
- Complete cap sewing kit, including:
- 8ea. Wide-field cap frames
- Cap stretcher
- 4ea. Cap drivers
- 2ea. Cap sashes
- Repositionable support table
- Heavy-duty casters & attachment hardware
- Operator’s toolkit
- HappyLINK, HappyLAN connection software, parts & operator’s manuals (in PDF form)
Happy Japan Techs Set Up Your Machine for You and Provide Training!
| SKU | 87114 |
|---|---|
| Part Number | HCR3-1504 |
| Condition | New |
