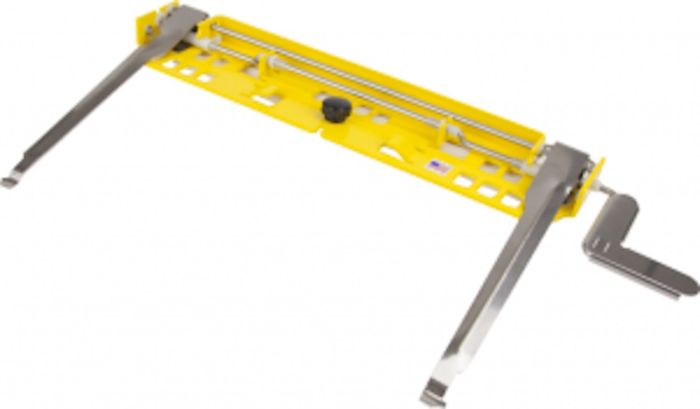

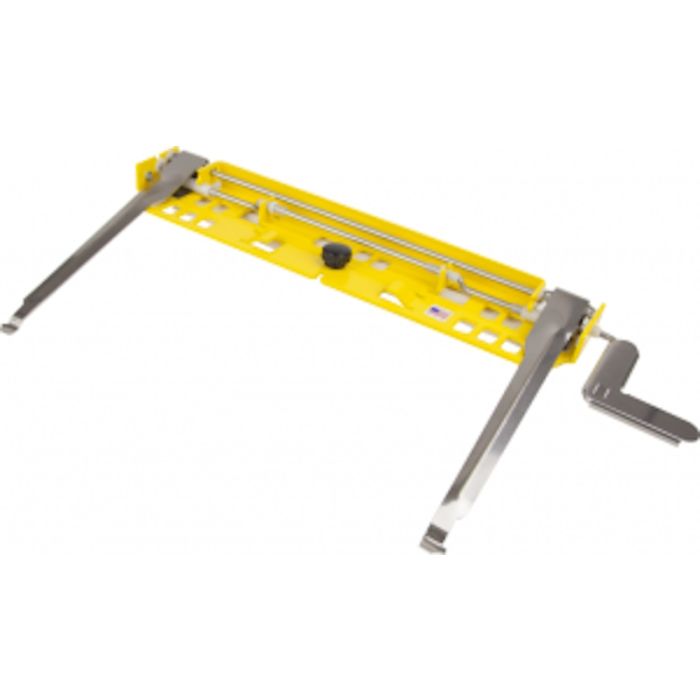

Hooptech Slimline 2 Clamping System
The Slimline 2 is a low-profile, rail mounted clamping system. There are (7) available window sizes ranging from 6.5″x6.5″ square up to a 12″x9″ rectangular window. This clamp is the perfect choice for embroidering on saddle pads, towels, blankets, back of jackets, and much more!
The Slimline 2 does not fit on the Brother PR & Babylock machines as the chassis and windows are too large.
The Slimline 2 is not packaged with window sets so that the buyer can select the window size choices to suite their product sewing needs.
Choices for Windows are below
-
-
-
-
-
-
-
lamping System Features
- Single lever opens, closes and locks the clamp.
- (7) interchangeable window sizes to choose from.
- Mounts directly to machine drive bar for positive attachment.
- All metal construction, powder coated aluminum & stainless steel.
- Mounting adapters are available for all major single head machines.
- The clamp automatically adjusts to different fabric thickness.
- Clamping action does not leave hoop burn.
- Clamp stays on the machine while loading and unloading.
Slimline 2 Window Sets
Each window set for the Slimline 2 comes in 2 pieces. There is a bottom yellow base and a top silver window. All window sets quickly and easily install onto the chassis; no tools required.
The different windows allow you to customize the Slimline 2 to fit your sewing needs.
12″ x 9″ Window Set
The 12″×9″ window is the largest window available for the Slim Line 2 and a popular choice for embroiders who sew large designs. Typical applications include blankets, sports bags, towels, chair covers, car mats and flat piece work.
9”x 9” Window Set
The 9″×9″ window works well in large pockets of duffel bags, tote bags, towels, blankets and pillowcases.
8”x 8” Window Set
The 8″×8″ window works well for left chest embroidery on heavy jackets.
6.5”x 6.5” Window Set
The 6.5″×6.5″ window is smallest of the Slim Line 2 windows which allows it to fit in smaller pockets.
4.5”x 9” Window Set
The 4.5″ x9.0″ window is twice as long as it is wide which makes it perfect for pant legs, sleeves on jackets, sweaters and sweatshirts. This window also works well for the area between the handle straps on canvas tote bags.
12”x 5” Window Set
The 12″×5″ window allows a place for fabric to accumulate when sewing toward the middle of large pieces of fabric or garments. It will also work well for the front of sweaters and sweatshirts.
8”x 5” Window Set
The 8″×5″ allows a place for fabric to accumulate when sewing in toward the middle of large piece of fabric or garment. It will also work well for the front of sweaters and sweatshirts.
| SKU | 66246 |
|---|---|
| Part Number | slimline 2 |
| Condition | New |
