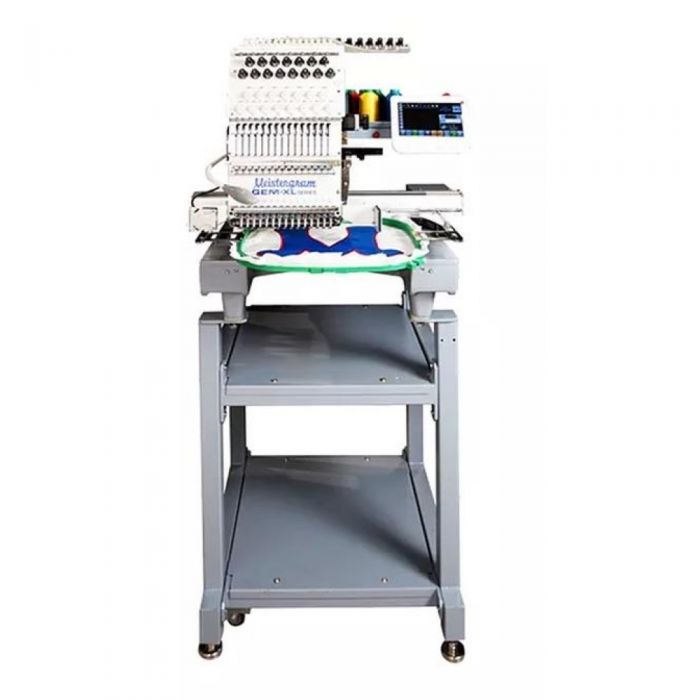

Meistergram GEM 1500XL 20" X 16 Commercial Embroidery Machine

In stock

Start or add to your embroidery business with the Meistergram GEM 1500XL 510 X 420 Commercial Embroidery Machine .  The Meistergram GEM 1500XL 510 X 420 Commercial Embroidery Machine is a single head 15 needle embroidery machine packed with features.

Don't Let the MSRP listed concern you that you cannot afford the great machine!

Special Offer!

Please email us at if you would like to be contacted with offer information.


Meistergram - GEM XL 1500/510 1 Head Embroidery Machine


  • Compact Commercial

  • Simple 4 step embroidery programming (Choose Design > Choose Colors >Choose Frame > Confirm).

  • Multi-task capable OS (Allows setup for your next job while embroidering).

  • Optimal ergonomic operating height. (Eliminates hard to reach hoop placement and helps avoid physical strain)

  • High quality tensioners with brass plate inserts to give the smoothest pull of tension

  • Easy access dual USB ports (support .dst, .dsb, .zsk, and .fdr files).

  • Preset hoop selection with auto centering helps for a quick embroidery setup.

  • Simple square and contour tracing features.

  • 270-degree cap driver- embroider ear to ear in one cycle.

  • Independent adjustable presser foot height.

  • Universal Needle Plate
  • Onboard lettering system

  • Color program memory retention (Stores color sequence information for future use of design).

  • Includes extra hoop for quick change and production continuity.(2x each hoop size, some exclusions apply).

  • Smooth and Quiet Operation compared to the competition

  • Maximum sew area of 510(x) x 420(y)mm (20" x 16.50")

  • Maximum speed of 1200 stitches per minute

  • Memory storage capacity: 100 million stitches /500 Designs/ 2 million stitches per design

  • Multi-language includes English, Spanish, Portuguese, and more…..

  • 110-220 VAC Self-adjusting power input

  • Built in replaceable protective fuse

  • 48V Stepper Motors with Encoders for high precision and the best stitch quality every time.

  • Servo motor for the main motor

  • On-board diagnostic system keeps error logs and gives real time readings of motor temperatures.

  • Independent adjustable presser foot height.

  • Universal Needle Plate

  • Emergency Stop

  • Brass inserted tension knobs for smooth adjustment

  • Industrial grade powder coat for maximum durability and corrosion resistance.

  • Dimensions: 30.5” x 30” x 65.5”

  • Weight: 264 lbs


  • Smooth and Quiet Operation
  • Large Sew field Compact design
  • Automatic Color Change
  • Automatic Trim
  • Thread Clamping System
  • Quick Trace Feature
  • Adjustable Presser Feet Heights
  • 7" High Definition Touch Screen Display
  • Built-In Laser Tracing Device
  • On-board Lettering
  • Preset Hoop Feature
  • 270 Degree Cap System
  • USB Ready
  • Auto Switchable 110 VAC/220 VAC Input


  • Heads: 1
  • Needles per head: 15
  • Sewfield per head: 20 x 16.5 inch
  • Maximum sewing speed: 1200 stitches per minute
  • Memory storage capacity: 16 million stitches (400 Designs)
  • Tubular hoops included: 7 sizes (14 total)
  • Special attachment included: Cap device, sash frame, flat table
  • File formats supported: .dst , .dsb
  • Stand included: Yes
  • Safety Devices: Safety beam , Emergency stop button
  •  Ken's provides support for the life you own the machine
  • Machine Stand Included
  •  10 Hoops Included
  •  cap frame, driver and cap stand
  • Tool Kit As Pictured
  • Starter Kit as Pictured
  • phone and internet support


One (1) year: parts and labor

Five (3) years: all electronic components including wiring harnesses/cables, motors, solenoids, switches, sensors, rotary encoders, fans, noise filters, transformers, light fixtures, printed circuit boards/cards, controller, and potentiometer.

Five (5) years: drive train components including bushings, bearings, cams, gears, pulleys, sprockets, belts, chains, shafts, drive cables, frame drive rails.

Ten (10) years: Machine frame structure

More Information
Part Number GEM1502XL
Condition New
