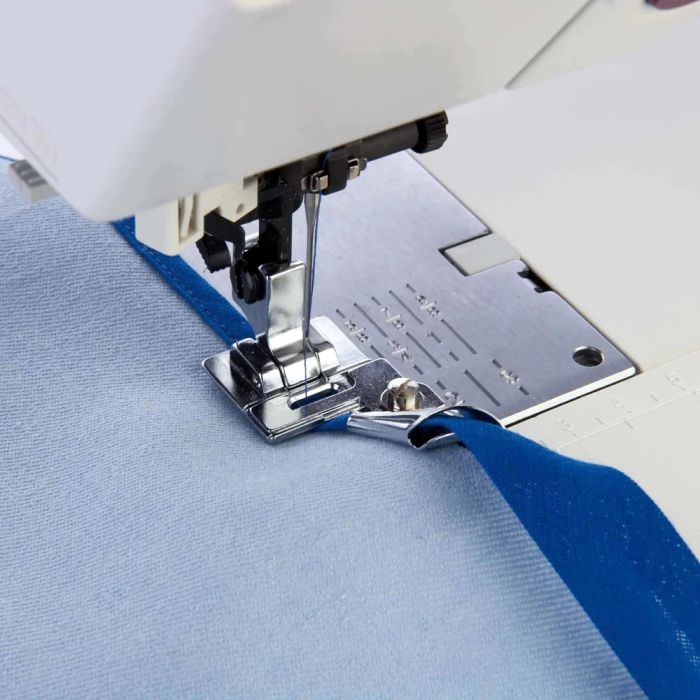

- Bias tape is fed into the front scroll guide of the binder
- Fabric is inserted into the slot of the binder, sandwiched inside the bias tape edges
- Fabric edge is automatically bound by the bias tape while you sew
Compatible with Pfaff Models
Category A
Machines with 5 mm and 6 mm stitch width, without IDT™ system
varimatic™ 6087, 6086, 6085 (6 mm)
*hobby™ 309, 307, 303, 301 (5,5 mm)
These sewing machines have a presser foot holder of 6 mm. Because newer presser feet are produced to fit 8 mm holders, there may be a small gap between the holder and the presser foot attachment. You will need to change the 8 mm presser foot holder when using the newer presser feet.
Category B
Machines with 5,5 mm stitch width, without IDT™ system
hobby™ 1042, 1040, 1032, 1030, 1022, 1020, 1016
Category C
Machines with 5,5 mm stitch width, without IDT™ system
expression™ 2014
tiptronic™ 6112, 6110, 2020, 2010
select™ 2.2, 2.0, 1528, 1526, 1520
hobby™ 4260, 4250, 4240
Category D
Machines with 5,5 mm and 6 mm stitch width, and IDT™ system
select™ 4.2, 4.0, 3.2, 3.0,
select™ 1548, 1546, 1540, 1538, 1536, 1530 (5,5 mm)
tiptronic™ 6270, 6250, 6232, 6230,
tiptronic™ 6152, 6150, 6122, 6120 (5,5/6 mm)
stretch & jeans™ 6091 (6 mm)
freestyle™ 1527, 1522
Category E
Machines with 6 mm stitch width, and IDT™ system
creative™ 2124
quilt expression™ 2046, 2044, 2042
expression™ 2036, 2034, 2028, 2026, 2024
classicstyle™ 2029, 2027, 2025, 2023
tiptronic™ 2040, 2030, 2020, 2010
Category F
Machines with 9 mm stitch width,
without IDT™ system
creative™ 7560
Category G
Machines with 9 mm stitch width, and IDT™ system
creative™ 2170 , 2144, 2140, 2134
creative™ 7570, 7562, 7550, 7530
performance™ 2058, 2056, 2054
quilt expression™ 2048
expression™ 2038
Category J
Machines with 9 mm stitch width, and IDT™ system
creative sensation™ pro II
creative sensation™ pro
creative sensation™
creative vision™
creative performance™
creative™ 4.5, 4.0, 3.0, 2.0
performance™ 5.0, 5.2
quilt expression™ 4.2, 4.0, 720
expression™ 3.5, 3.2, 3.0, 2.0
expression™ 150, 710
Category K
Machines with 7 mm stitch width, and IDT™ system
creative™ 1.5
quilt ambition™ 2.0, 630
ambition™ 1.0, 1.5, 155
ambition™ 610, 620
ambition essential™
passport™ 2.0, 3.0
Machines with 6 mm stitch width
SMARTER BY PFAFF™ 260c,160s,140s
Category L
Machines with 9 mm stitch width, and IDT™ system
creative icon™ 2
creative icon™
performance icon™
How To Use:
1. Remove the presser foot. Attach the Bias Binder.
2. Cut the beginning of the bias tape at a diagonal.
3. Feed the tape into the scroll of the binder and pull out to the back.
4. Adjust the binder and/or the needle position so that the needle pierces the fabric approximately 1 - 1.5 mm (1/16 inch) from the folded edge of the bias tape.
5. Stitch about 25 mm (1 inch) along the Bias Tape.
6. Insert the edge of the fabric to be bound between the Bias Tape edges into the slot of the binder. The Bias Tape will enclose the raw edge automatically during sewing. TIP: Using a zigzag or fancy stitch will give you even more of a decorative effect.
