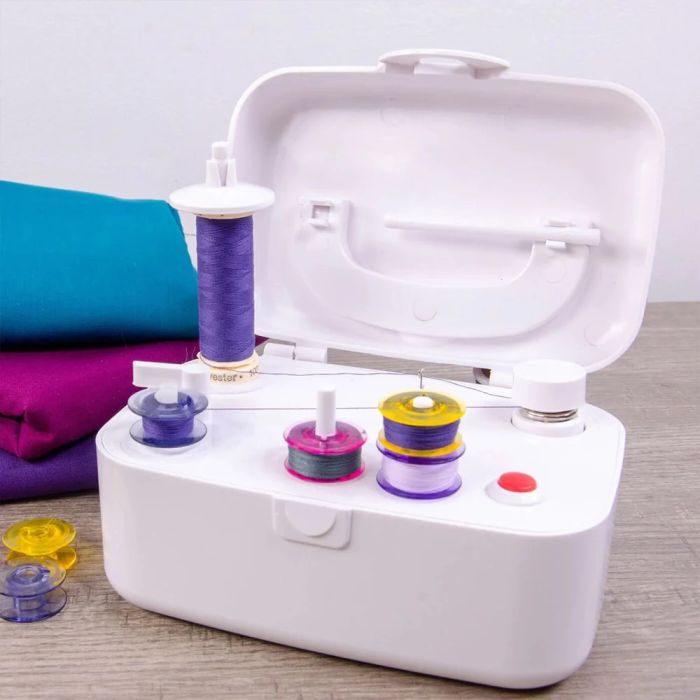

Pfaff Bobbin Winder

Never unthread your machine to wind a bobbin again!
Easy, one-touch bobbin winding with automatic shut-off when the bobbin is full. Designed for use with PFAFF® bobbins.

Compatible with Pfaff Models

creative sensation pro II
creative sensation pro
creative sensation
creative vision
creative performance
creative 4.5, 4.0, 3.0, 2.0
performance 5.0, 5.2
quilt expression 4.2, 4.0, 720
expression 3.5, 3.2, 3.0, 2.0
expression 150, 710

creative icon 2
creative icon
performance icon

How to Use:

1. Open the top cover by pulling up on the lock tab.

2. Lift up the spindle to fully extend its position.

3. Place spool of thread onto the spindle.

4. Follow the directional arrows and wind the thread through the eyelet and around the thread tension disk.

5. Pass the end of the thread through the hole in bobbin, insert the bobbin onto the bobbin winding shaft, and twist the bobbin gently until the spring on the shaft clicks into place.

6. Make sure the bobbin bar fits between the top and bottom rims of the bobbin.

7. Press the "on" button to start.

8. The Bobbin will automatically stop winding when full.

Note: Only use with the provided power adapter and insert it into the side power port of the Bobbin Winder, or use four AA batteries (not included).
