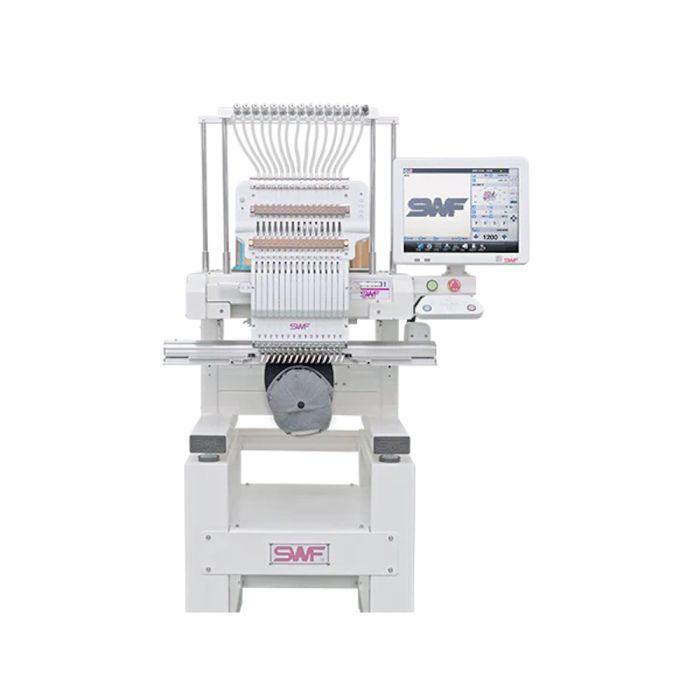

SWF KX-1501 15 Needle Embroidery Machine with Cap System and Stand

Introducing the all new KX series embroidery machine from SWF. Say hello to innovation and goodbye to frustration. SWF has raised the bar for embroidery once again by adding tons of new features such as a smart tension system and an adjustable presser foot.

Free Shipping to your Door within the Lower 48 Unites States from SWF

Free Lifetime Support from SWF

Machine Specifications

• Maximum speed
  – Flat (standard): up to 1,200 spm
  – Cap: up to 1,000 spm
• Embroidery area
  – Tubular: 520 × 360 mm 20” X 14”
  – Cap: 360 × 75 mm 14” X 3”
  – Border: 520 × 360 mm 20” X 14”
• Memory capacity: 40,000,000 stitches
• Power supply: 100–240 V AC, 50/60 Hz
• Power consumption: 120 W
• Works on a standard 110 Volt outlet

15‑inch Full‑Touch LCD

A large touch‑screen control panel makes it easy to view settings and embroidery status. Advanced functions include Free‑Hand Stitch, Smart Embroidery System (SES), per‑needle design selection, and more.

Easy‑Change Cap System (factory option)

The cap frame has been redesigned to be lighter and stronger. Switching between the cap frame and tubular frames is quick and tool‑free (thumb screws), supporting efficient workflows and high‑speed operation.

Border Frame

The KX model offers a large 520 × 360 mm embroidery area in a compact machine. A variety of standard frame sizes is available.

SWNS (SunStar World Networking System)

Network your SWF embroidery machines wirelessly. Send and receive designs via Wi‑Fi and manage up to 200 machines to reduce downtime and increase productivity. (Compatible with SWF MAS, KE, KS, and KX series. Router/access point and wireless receivers are not included.)

New Technology

Smart Tension System (STS) (factory option)

Automatically adjusts upper‑thread tension by analyzing stitch type and machine speed, delivering consistent quality and reducing manual tension adjustments.

Smart Action Presser Foot (SAP)

Automatically adjusts presser‑foot height using an independent motor. Whether the material is thick or thin, SAP maintains optimal clearance for reliable results. Minimum foot height can be set from the operation panel.

Slim Cylinder Arm

A redesigned cylinder arm improves quality on tubular and hard‑to‑reach products by reducing the cylinder‑bed circumference to 170 mm and narrowing the space between the needle plate and the cap frame.

Picker On / Off

Available in two versions. Choosing the picker‑off version eliminates picker replacement if it bends or snaps, and makes bobbin and bobbin‑case changes easier.

Included Accessories

Quick Change Cap Frame Set

• cap frames (2PCS Per Head)
• cap frame drivers (1PCS)
• cap frame holder (1PCS)

Tubular Round Frame (2PCS Per Head)

• TRF 12 (4.25")
• TRF 15 (5.4")
• TRF 18 (6.6")

Tubular Square Frame (2PCS Per Head)

• TSF-30x30cm (12.3" x 12.3")
• TSF-45x44cm (16.6" x 17.1")
