Baby Lock Meridian Embroidery Machine With $400 Bonus Kit Closeout Pricing
Advanced Orders. Shipping 4/23

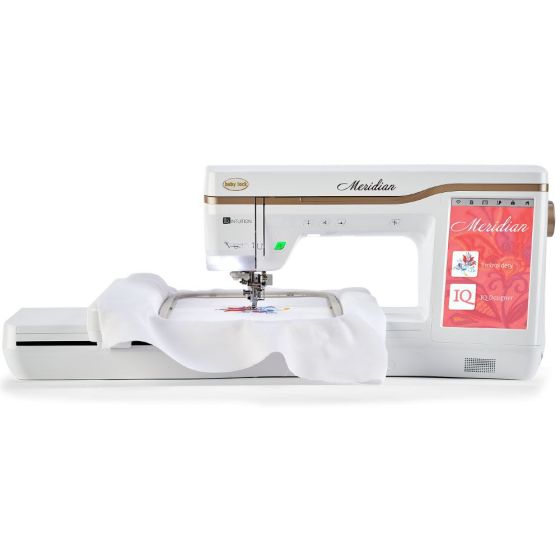

Raise the bar for what’s possible with your embroidery projects with the Baby Lock Meridian embroidery machine. The Baby Lock Meridian Embroidery Machine makes embroidery easier than ever thanks to IQ Technology™ that allows you to wirelessly transfer images to your machine from your smart device using the IQ Intuition™ Positioning App for perfect design placement in the hoop or design creation in IQ™ Designer.
$400 Bonus Kit Included for a Limited Time with the Baby Lock Meridian Embroidery Machine
24 Spool Thread Set
4 Roll Stabilizer Set
4 Packs Recommended Needles
12 Preowound Bobbins with Embroidery Bobbin Thread
Meridian Workbook
60 Day Love Of Knowledge Trial Version
For a Limted Time Upgrade the Merdian to a Merdian 2 with the inexpensive software upgrade
Key Features of the Upgrade to Meridian 2 Include:
(see video for additions)
Couching Embroidery Foot
Couching Embroidery Patterns
7” x 12” Magnetic Frame
2-Point Positioning
Easy Stippling in Embroidery Editing
15 Additional IQ Designer Decorative Fill Designs
12 New IQ Designer Line Motifs
2 More Embroidery Fonts
1 New Monogramming Font
Additional Embroidery Patterns
The Baby Lock Meridian embroidery machine features include:
- IQ Intuition Positioning - Use the IQ Intuition Positioning® App to take a photo of your fabric in a special hoop and transfer it wirelessly to the Meridian. The image will display onscreen in lifelike color and sharp resolution, allowing you to position your design exactly where you want it, how you want it –every time.
- Design Database Transfer
- 9-1/2" x 14" Embroidery Field - Stitch bigger embroidery designs and enjoy less re-hooping with a large embroidery field.
- IQ Designer - Create your own embroidery designs with ease. Take a photo with the IQ Intuition Positioning® App and wirelessly transmit it to the Meridian! Draw directly on the screen, or if you’re feeling inspired by an existing art file, simply upload it to the Meridian through the USB drive. Your art will be instantly digitized with the colors and fill stitches you choose.
- 494 Built-In Embroidery Designs
- Large 11.25" Workspace
- Needle Beam - Know exactly where the needle will drop every time with a brilliant LED pointer on the included embroidery foot. There’s no more guesswork.
Specifications and Included Accessories with the Baby Lock Meridian Embroidery Machine
Included Accessories with the Baby Lock Meridian Embroidery Machine
- Touch pen (stylus)
- Embroidery foot with LED pointer
- Soft canvas cover for machine with 3 storage pockets
- Bobbin center pin
- Embroidery bobbin thread
- Bobbins (10)
- Embroidery Positioning Stickers (4-Sheets of 64)
- Lens calibration sheet for use with the positioning app
- Seam ripper
- Needle set
- Scissors
- Cleaning brush
- Screwdrivers
- Spool caps (5)
- Spool felt and Spool nets (2)
- Embroidery needle plate cover,
- IQ Intuition Embroidery hoops and grids included
- 9.5" x 14" (240mm x 360mm)
- 5" x 7" (130mm x 180mm)
Embroidery Features of the Baby Lock Meridian Embroidery Machine
- 9-Point trial checkpoints
- Starting point key for instant alignment of characters or patterns
- Customize embroidery pattern and thumbnail back ground colors (66 options)
- On-screen grid
- Cuts jump stitches (with on/off capability)
- Embroiders up to 14” x 9.5” (360mm x 240mm) embroidery field
- 494 Embroidery designs built-in including
- 200 Baby Lock exclusives
- 10 Floral Redwork Designs
- 10 Border Designs
- Font Embellishments (32 total)
- 15 Buttonhole embroidery designs in 3 sizes (45 total)
- 15 Buttonhole embroidery frame designs
- 160 Large decorative stitch designs
- Memory capacity approximately 10MB
- Reads embroidery designs with a stitch capacity of up to 700,000 stitches per design
- 30 font styles including
- Exclusive script alphabet and characters (70 total)
- Large floral block alphabet (30 total)
- Calligraphy alphabet and characters (81 total)
- Large vine alphabet in two sizes (60 total)
- Large floral alphabet in two sizes
- WXGA, IPS Color LCD Touch Screen shows:
- Design placement using drag/drop and slide/scroll capabilities
- Enhanced Realistic Preview
- Design previews can be enlarged 200%
- Needle positioning grid selections
- Needle position image can be enlarged 200%
- Estimated embroidery time display and stitch count
- Needle advancement (1, 10, 100, or 1000 stitch increments or entire color)
- Measurements displayed in inches or millimeters
- Color separation
- Thread color indicator
- On-screen hoop size indicator
- Low bobbin thread indicator
- 300 color names
- Screen saver customization
- Thumbnail images viewed at 150% the normal size
Technology Features of the Baby Lock Meridian Embroidery Machine
- Embroidery speed up to 1,050 spm
- Resume mode
- Programmable shutoff capabilities
- Eco power mode
- LED Needle Beam for precision alignment of embroidery designs
- Color Visualizer with pinnable color selections and favorites
- Enhanced Stadium Lighting for 50% brighter true color
- LED lighting on the needle and work area with 5 settings
- 2 USB drives (Type A) USB 2.0 drives to connect a mouse, flash drives, hub and CD-ROM drives
- Precise tracking system on embroidery carriage
- NeverMiss™ Automatic Advanced Threading System
- Automatic sensors
- Thread tension control makes tension adjustments for accurate stitches
- Upper and lower thread sensors on/off
- Upper and lower thread sensors to alert when threads run out
- On-screen hoop sensor to recommend size of hoop
- WXGA,IPS Color LCD Touchscreen
- Shows 16,777,216 colors
- Measures 10.1" diagonally
- Displays Clock and Date
- Use IQ Intuition Positioning app to
- Precisely place embroidery designs
- Transmit images to create designs in IQ Designer
- Mpeg-4 movie/video play function
- Video display size 6.2" diagonally
- Exclusive 1GB Memory Storage for video
- IQ Designer
- Image on the LCD screen can be magnified up to 800%
- Will automatically create an embroidery pattern from a JPEG image
- Drawing area is 3-3/4" x 5-11/16" (96mm x 145mm)
- 90 Preloaded open, closed and region shapes
- Able to select different line colors and fill colors
- 6 Different stitch patterns: running, bean, satin, no outline, chainstitch, and candlewicking
- 18 Different fill patterns: regular fill, no fill, stipple inside or around a shape, and 15 decorative pattern fills
- Duplicate and paste editing preloaded shapes
- Adjust line, fill and stippling width, length and density properties
- Undersewing options
- Outline stamp shape creation for Trapunto techniques
Embroidery Editing Capabilities of the Baby Lock Meridian Embroidery Machine
- Combine embroidery designs on screen
- Character/text array function
- Character spacing
- Multi-line text with justification options
- Character insert and group edit capabilities
- 0.1°, 1°, 10°, and 90° pattern rotation
- Enhanced design enlargement (up to 200%) and reduction (down to 60%) capabilities
- Design duplication
- Multiple design selection capabilities
- Automatic appliqué
- Automatic basting
- Add stippling set distance around embroidery designs
- Mirror imaging
- Change color selections within designs
- Enhanced color sorting to optimize sewing order
- Monochrome option for embroidery designs
The Baby Lock Meridian Embroidery Machine comes with a factory warranty
25 years to be free of defects in product casting due to imperfections in workmanship and materials.
10 years covers your machine from defective mechanical parts due to flaws in workmanship and materials, excluding normally expendable parts.
2 years cover your device from defects in the electrical equipment
1 year covers it from defects in the electronic circuit boards and one ( year of free warranty labor by an Authorized Baby Lock Retailer
Ken's Sewing Center provides free support for the life you own your machine purchased from us.
| SKU | 65698 |
|---|---|
| UPC | 98612048534 |
| Part Number | BLMA |
| Condition | New |
