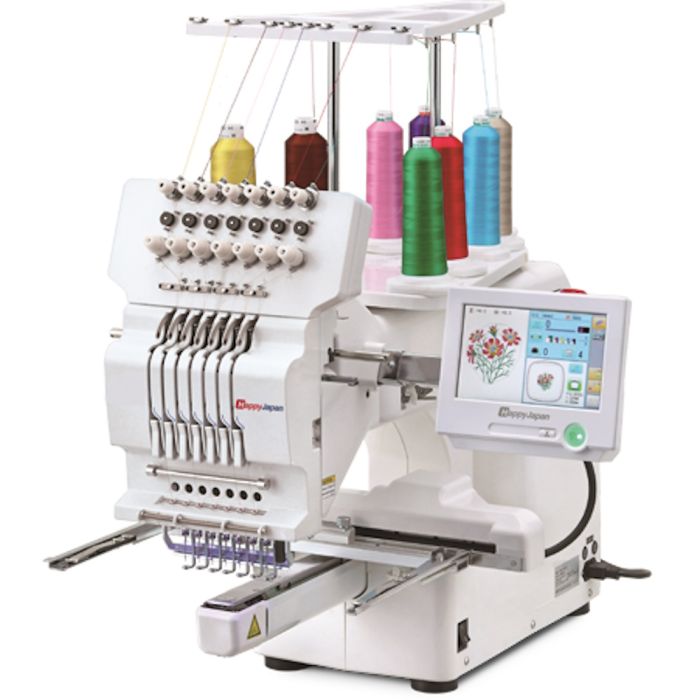

Happy Japan Journey HCH-701 Semi Commercial Multi Needle Embroidery Machine

$9,995.00
In stock
SKU
87104

The 7-needle Journey embroidery machine from HappyJapan provides a lot for its entry-level price: a large 11.4″ x 11.2″ sewing field, fast 1000spm sewing speed, and an unrestricted sewing arm that allows the machine to take on very large and small products.  The Happy Japan HCH-701-30TTC Semi Commercial Multi Needle Embroidery Machine  Journey is also very easy to learn and operate, with its intuitive touchscreen controls and customizable front screen.   Whether a startup or an established business, any size operation can take advantage of this machine’s capabilities.  Happy Japan HCH-701-30TTC Semi Commercial Multi Needle Embroidery Machine  is the 7 needle auto color change compact size single head embroidery machine for entry level embroiderers and shops. Same as other models, HCH also comes with a whole package of fantastic features – Position laser marker, Bobbin thread winder, popular size standard hoops and variety optional attachments.  The Happy Japan HCH-701-30TTC Semi Commercial Multi Needle Embroidery Machine  user friendly control panel is easy to operate and in-depth useful functions are the very proof of “Japanese-style” attentiveness. Now HCH is ready to work for you.

For a limited time get the Durkee EZ Frame  Plue Set with this machine purchase!

(A $399.95 Value!)

Includes 2"x4", 5"x4" ,7"x5", 8"x8" EZ Frames & EZ Cap Frame.

Features of the Happy Japan HCH-701-30TTC Semi Commercial Multi Needle Embroidery Machine

  • Journey's compact 11" x 17" footprint and light (88lb) weight allows you to operate just about anywhere - in a shop, a spare room in your home, or even take it on the road!
  • Powerful AC Semi Commercial Motor
  • Heavy-duty drive system gives years of high-quality, sustained high-speed production – 1000spm max, 650spm on caps
  • Its sewing arm is unrestricted by support legs, allowing embroidery on very large items such as golf bags, suitcases and more
  • Journey produces excellent embroidery on both flat goods such as shirts, hoodies and jackets, and on ballcaps
  • Large 11.4" x 11.2" sewing field, fast 1000 stitch per minute speed
  • 7 Needles for fast embroidery of multicolored embroidery designs
  • Sttches up to 1,000 stitches per minute on garments and 650 stitches per minute on optional cap frame
  • Narrow Cylinder Arm Style Construction makes hooping garments, bags and more so easy
  • Manual Tensions so you can control every needles tension
  • Uses Popular L Style Bobbin easy to find.  Ken's Sewing Center carries several brands of prewound embroidery Style L bobbins
  • Uses Popuylar DBxK5 Embroidery Needles.  Ken's Sewing Center carries several sizes of these needles all the time.
  • Incudes 12.5" x 12.5" Square Embroidery Hoop and 5.5" Round Embroidery Hoop
  • 100 Million Stitch / 3,000 design capacity built in memory
  • Automatic thread trimmer
  • Thread Break Detection Sensor System
  • Built In Bobbin Winder
  • 10 Inch Color Touch Screen
  • Laser Position Marker
  • Direct PC Connection USB or LAN
  • 12 Built In Fonts in 6 Sizes ranging from 1/4" to 2" tall
  • 100 Built In Designs
  • Thread Stand Holds Home 7 Commercial Size Embroidery Thread Spools
  • Dimensions: 25.3"w x 29.4"d x 29"h
  • Reads popular .DST or .TAP FORMATS
  • Display in both metric and inches
  • 100% Made in Japan

Get The Happy 701 Manual Here



Accessories Included with the Happy Japan HCH701S Commercial 7 Needle Embroidery Machine

1. Thread guide bracket
2. Thread guide pillar (2 pcs)
3. Thread stand
4. Thread stand felt (9 pcs)
5. Thread stand pin (9 pcs)
6. Wave washer (9 pcs)
7. Carriage
8. Frame base
9. Embroidery frame 12.6" x 12.6"
10. Embroidery frame (Round) 5.9"
11. Needle (DB X K5) (10 pcs)
12. Oiler
13. Sewing machine oil
14. USB flash drive
(Instruction manual, Parts list. Happy Link Software)
15. Bobbin (1 pc)
16. Instruction book (USB flash drive)
17. LAN cable
18. Power cord ass’y (A shape will be changed
depending on a destination)
19. Fuse (6A)
20. Off set screw driver
21. #2 (+) Screw driver
22. 2 mm (-) Screw driver
23. 3 mm hexagonal driver
24. 2.5 mm hexagonal driver
25. Brush
27. Clamp filter
28. Stylus
28. USB cable

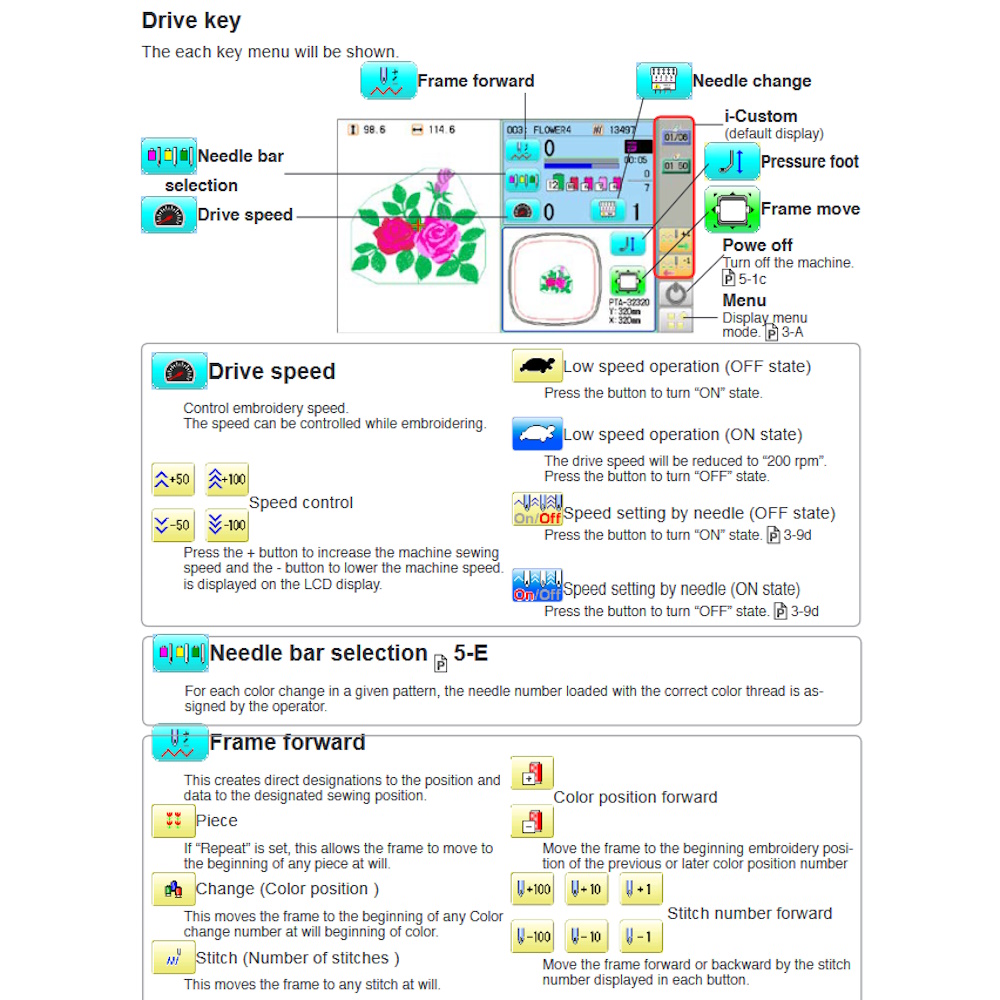

Major Function Keys On the Happy HCH-701



You will not outgrow this machine anytime soon. Lots of OPTIONAL Accessories available like.

  • Professional Cap System can get within 1/4" of the brim of a cap





  • One Pont Frame
  • Shoe Clamp
  • Sock Frame
  • Side Clamps
  • Manual Clamp
  • Durkee Cap Frame
  • Durkee EZ Frame System
  • Hoop Master Magnetic Frames
  • Hooptech Hoops
  • Machine Stand

Warranty:

5-Year Limited Warranty ( HCH Standard) covers Parts as described below (travel cost not included) for HCS/HCH products only: One Year warranty coverage on all Mechanical Parts excluding consumption parts and damage caused by neglect, lack of machine care, maintenance and or improper use. Two Years warranty coverage on all Electronic Circuit Boards excluding consumption parts and damage caused by neglect, lack of machine care, maintenance and or improper use. Five Years warranty coverage on The Machine Casting excluding consumption parts and damage caused by neglect, lack of machine care, maintenance and or improper use. Consumable Items not covered: Needles, trimmers, sewing hooks, thread catch hooks, bobbin cases, bobbins, presser feet, hoops, screws, nuts, bolts, bulbs, cap frames, fuses and filters

More Information
SKU 87104
Part Number HCH-701-30TTC
Condition New
