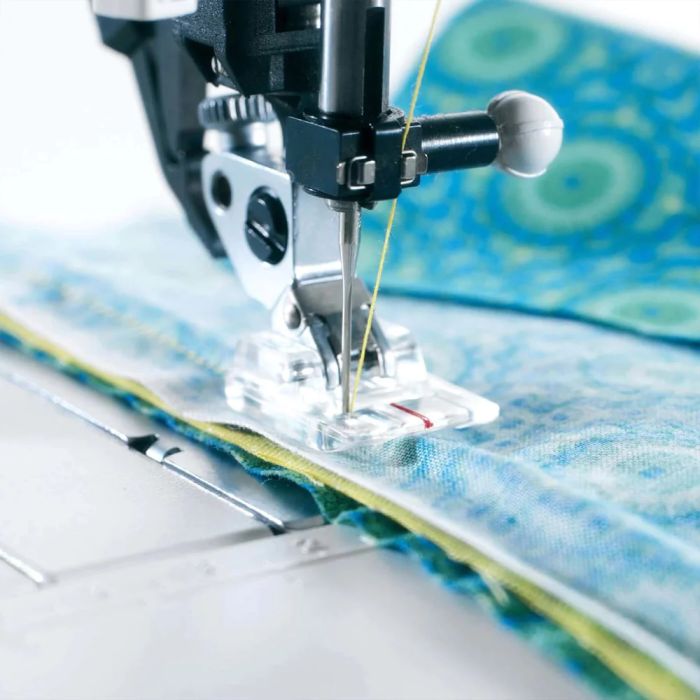

To stitch piping into a seam:
1. Snap on the Piping Foot.
2. Place piping with raw edges along the seam line on the right side of the fabric. Place second piece of fabric on the top with right sides together.
3. Put fabric and piping layers under Piping Foot with the piping in the groove on the underside of the foot.
4. Sew with a straight stitch, length 2.5. The groove on the underside of the foot will guide the piping as you sew.
To make piping from your fabric:
1. Snap on the Piping Foot.
2. Cut bias or crosswise grain strips, wide enough to cover the cording plus seam allowances.
3. Lay the cording on the wrong side of the fabric strip and wrap the fabric over the cord.
4. Place the fabric and cord under the Piping Foot with the cord in the groove on the underside of the foot.
5. Sew with a straight stitch, length 2.5. The groove will guide the cord so the fabric covers it evenly.
6. Use your new piping in projects, following the steps above.
TIP: When you sew this piping into a garment, adjust the needle position so it stitches one setting closer to the cord to cover the first stitching.
Compatible with Pfaff Sewing Machine Models
Category A
Machines with 5 mm and 6 mm stitch width, without IDT™ system
varimatic™ 6087, 6086, 6085 (6 mm)
*hobby™ 309, 307, 303, 301 (5,5 mm)
These sewing machines have a presser foot holder of 6 mm. Because newer presser feet are produced to fit 8 mm holders, there may be a small gap between the holder and the presser foot attachment. You will need to change the 8 mm presser foot holder when using the newer presser feet.
Category B
Machines with 5,5 mm stitch width, without IDT™ system
hobby™ 1042, 1040, 1032, 1030, 1022, 1020, 1016
Category C
Machines with 5,5 mm stitch width, without IDT™ system
expression™ 2014
tiptronic™ 6112, 6110, 2020, 2010
select™ 2.2, 2.0, 1528, 1526, 1520
hobby™ 4260, 4250, 4240
Category D
Machines with 5,5 mm and 6 mm stitch width, and IDT™ system
select™ 4.2, 4.0, 3.2, 3.0,
select™ 1548, 1546, 1540, 1538, 1536, 1530 (5,5 mm)
tiptronic™ 6270, 6250, 6232, 6230,
tiptronic™ 6152, 6150, 6122, 6120 (5,5/6 mm)
stretch & jeans™ 6091 (6 mm)
freestyle™ 1527, 1522
Category E
Machines with 6 mm stitch width, and IDT™ system
creative™ 2124
quilt expression™ 2046, 2044, 2042
expression™ 2036, 2034, 2028, 2026, 2024
classicstyle™ 2029, 2027, 2025, 2023
tiptronic™ 2040, 2030, 2020, 2010
Category F
Machines with 9 mm stitch width,
without IDT™ system
creative™ 7560
Category G
Machines with 9 mm stitch width, and IDT™ system
creative™ 2170 , 2144, 2140, 2134
creative™ 7570, 7562, 7550, 7530
performance™ 2058, 2056, 2054
quilt expression™ 2048
expression™ 2038
Category J
Machines with 9 mm stitch width, and IDT™ system
creative sensation™ pro II
creative sensation™ pro
creative sensation™
creative vision™
creative performance™
creative™ 4.5, 4.0, 3.0, 2.0
performance™ 5.0, 5.2
quilt expression™ 4.2, 4.0, 720
expression™ 3.5, 3.2, 3.0, 2.0
expression™ 150, 710
Category K
Machines with 7 mm stitch width, and IDT™ system
creative™ 1.5
quilt ambition™ 2.0, 630
ambition™ 1.0, 1.5, 155
ambition™ 610, 620
ambition essential™
passport™ 2.0, 3.0
Machines with 6 mm stitch width
SMARTER BY PFAFF™ 260c,160s,140s
Category L
Machines with 9 mm stitch width, and IDT™ system
creative icon™ 2
creative icon™
performance icon™
