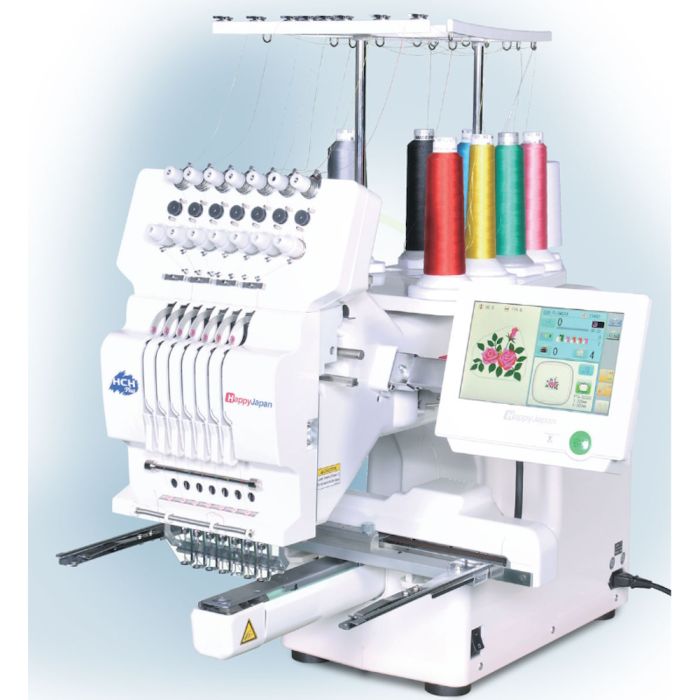

Happy Japan HCH-701P Voyager Commercial Multi Needle Embroidery Machine

$11,995.00
In stock
Only 3 left
SKU
87105

The 7-needle Journey embroidery machine from HappyJapan provides a lot for its entry-level price: a large 11.4″ x 11.2″ sewing field, fast 1000spm sewing speed, and an unrestricted sewing arm that allows the machine to take on very large and small products.  The Happy Japan HCH-701P-30TTC Commercial Multi Needle Embroidery Machine  Journey is also very easy to learn and operate, with its intuitive touchscreen controls and customizable front screen.   Whether a startup or an established business, any size operation can take advantage of this machine’s capabilities.  Happy Japan HCH-701P-30TTC Commercial Multi Needle Embroidery Machine  is the 7 needle auto color change compact size single head embroidery machine for entry level embroiderers and shops. Same as other models, HCH also comes with a whole package of fantastic features – Position laser marker, Bobbin thread winder, popular size standard hoops and variety optional attachments.  The Happy Japan HCH-701-30TTC Semi Commercial Multi Needle Embroidery Machine  user friendly control panel is easy to operate and in-depth useful functions are the very proof of “Japanese-style” attentiveness. Now HCH is ready to work for you.

For a limited time get the Durkee EZ Frame  Plue Set with this machine purchase!

Includes 2"x4", 5"x4" ,7"x5", 8"x8" EZ Frames & EZ Cap Frame.

Features of the Happy Japan HCH-701P-30TTC Voyager Commercial Multi Needle Embroidery Machine

  • Journey's compact 11" x 17" footprint and light (88lb) weight allows you to operate just about anywhere - in a shop, a spare room in your home, or even take it on the road!
  • Commercial Servo Motor Built In
  • Rotary Style Thread Break and Bobbin Sensors
  • Its sewing arm is unrestricted by support legs, allowing embroidery on very large items such as golf bags, suitcases and more
  • Journey produces excellent embroidery on both flat goods such as shirts, hoodies and jackets, and on ballcaps
  • Large 11.4" x 11.2" sewing field, fast 1000 stitch per minute speed
  • Cap embroidery field is 2.6" x 11.4"
  • 7 Needles for fast embroidery of multicolored embroidery designs
  • Sttches up to 1,000 stitches per minute on garments and 600 stitches per minute on optional cap frame
  • Set Speed for each needle independently
  • NEXT Feature allows you to set up your next design while running the machine
  • SAVE-STITCH allows you to pause your current task and resume where you left off
  • Combine logos and customer with lettering direct frm the touchpanel
  • Narrow Cylinder Arm Style Construction makes hooping garments, bags and more so easy
  • Digital Tensions so you can control every needles tension
  • Uses Popular L Style Bobbin easy to find.  Ken's Sewing Center carries several brands of prewound embroidery Style L bobbins
  • Uses Popuylar DBxK5 Embroidery Needles.  Ken's Sewing Center carries several sizes of these needles all the time.
  • Incudes 12.5" x 12.5" Square Embroidery Hoop and 5.5" Round Embroidery Hoop
  • 40 Million Stitch / 999 design capacity built in memory
  • Automatic thread trimmer
  • Thread Break Detection Sensor System
  • Built In Bobbin Winder
  • 10 Inch Color Touch Screen
  • Laser Position Marker
  • Direct PC Connection USB or LAN
  • 12 Built In Fonts in 6 Sizes
  • 100 Built In Designs
  • Thread Stand Holds Home 7 Commercial Size Embroidery Thread Spools
  • Reads populat .dst format
  • Display in both metric and inches
  • 100% Made in Japan

Get The Happy 701 Manual Here

Ken's Sewing Center provides lifetime support on your Happy Machine you purchase from us.  We have 4 full time technicians on site to help you.



Accessories Included with the Happy Japan HCH701S Commercial 7 Needle Embroidery Machine

1. Thread guide bracket
2. Thread guide pillar (2 pcs)
3. Thread stand
4. Thread stand felt (9 pcs)
5. Thread stand pin (9 pcs)
6. Wave washer (9 pcs)
7. Carriage
8. Frame base
9. Embroidery frame 12.5" x 12.5"
10. Embroidery frame (Round) 5.9"
11. Needle (DB X K5) (10 pcs)
12. Oiler
13. Sewing machine oil
14. USB flash drive
(Instruction manual, Parts list. Happy Link Software)
15. Bobbin (1 pc)
16. Instruction book (USB flash drive)
17. LAN cable
18. Power cord ass’y (A shape will be changed
depending on a destination)
19. Fuse (6A)
20. Off set screw driver
21. #2 (+) Screw driver
22. 2 mm (-) Screw driver
23. 3 mm hexagonal driver
24. 2.5 mm hexagonal driver
25. Brush
27. Clamp filter
28. Stylus
28. USB cable



Warranty

10-Year Limited Warranty ( Commercial ) covers Parts & Labor as described below (travel cost not included) for HCR/HCD/HCU/HCA/HCG/HCM products only: Two Years warranty coverage on all Mechanical Parts excluding consumption parts and damage caused by neglect, lack of machine care, maintenance and or improper use. Three Years warranty coverage on all Electronic Parts excluding consumption parts and damage caused by neglect, lack of machine care, maintenance and or improper use. Ten Years warranty coverage on all Drive Belts and Motors excluding consumption parts and damage caused by neglect, lack of machine care, maintenance and or improper use Consumable Items not covered: Needles, trimmers, sewing hooks, thread catch hooks, bobbin cases, bobbins, presser feet, hoops, screws, nuts, bolts, bulbs, cap frames, fuses and filters



You will not outgrow this machine anytime soon. Lots of OPTIONAL Accessories available like.

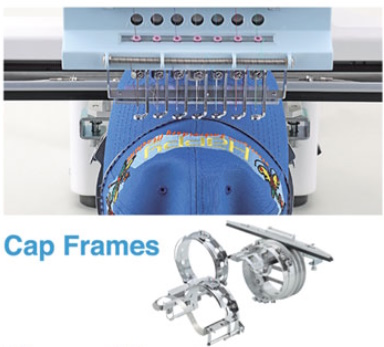

  • Professional Cap System Professional Cap System can get within 1/4" of the brim of a cap





  • One Pont Frame



  • Shoe Clamp
  • Side Clamps
  • Manual Clamp
  • Durkee Cap Frame
  • Durkee EZ Frame System
  • Hoop Master Magnetic Frames
  • Hooptech Hoops
  • Machine Stands

Get a copy of the instruction manual here

More Information
SKU 87105
Part Number HCH-701P-30TTC
Condition New
