Happy Japan HCS3 1201 Voyager 12 Needle Commercial Embroidery Machine

$13,995.00
In stock
SKU
87106

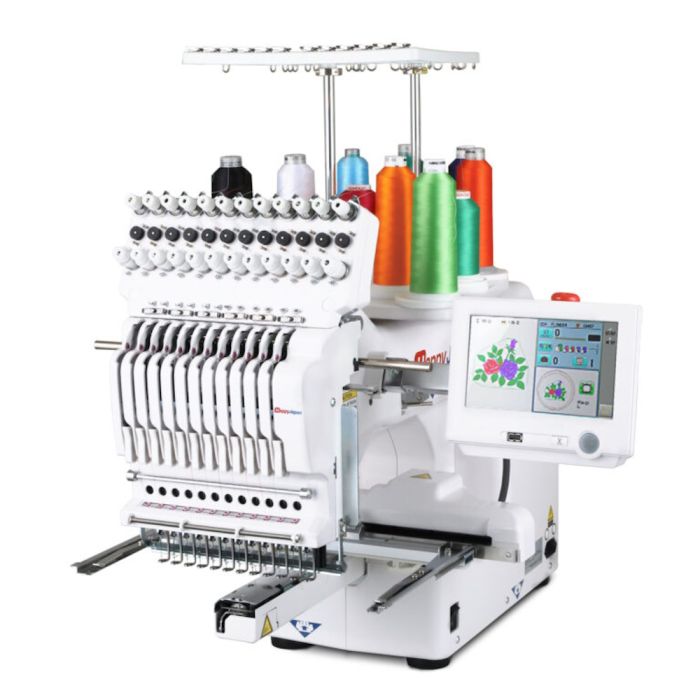

Happy Japan HCS3-1201-30TTC Voyager 12 Needle Commercial Embroidery Machine

The Happy Japan HCS3-1201-30TTC Voyager 12 Needle Commercial Embroidery Machine is the most capable compact single head embroidery machine in the industry.

When the original 12-needle Voyager was released over 20 years ago, it started a revolution in compact, yet truly commercial embroidery machines.  As HappyJapan had up to that point specialized in full-size, heavy-duty industrial embroidery machines, the company naturally transferred that design ethic to the original Voyager.  2 decades of continuous improvements later, the newest version – the HCS3 – inherits that proven heavy-duty drive system, which continues to impress owners with its ability to maintain high production speeds, hour upon hour, year upon year – without tiring.  There is simply no machine in Voyager’s size class (under 100 lbs) that can begin to match this machine’s continuous output and profit potential, and it will even outrun many larger, full-sized single-heads on that metric.  Voyager is simply the most capable compact machine on the market.

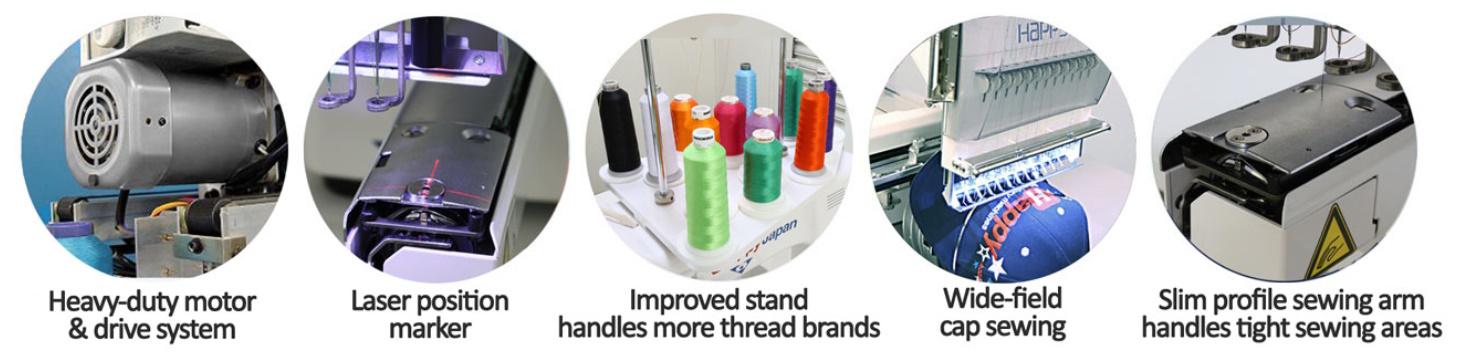

HappyJapan’s 12-needle Voyager (3rd Generation) is the most capable compact machine on the market. Within its efficient 11″ x 17″ footprint lies the heart of a true commercial machine, with an oversize sewing motor, heavy-duty drive shafts, belts, and bearings that enable sustained, high-speed production while demonstrating extreme durability. Its large tubular sewing field, true wide-field cap sewing ability, and unrestricted sewing arm allow sewing flexibility unmatched in its class. HappyJapan’s HCS3 is the latest generation Voyager, bringing further capabilities with a redesigned sewing head that’s more robust, easier to thread, and has a built-in laser marker. Other improvements include an ultra-slim profile sewing arm, redesigned thread stand that accommodates more types of thread cones, increased memory capacity, and refined cut cycle for cleaner embroidery.



For a limited time get the Durkee EZ Frame  Plue Set with this machine purchase!

(A $399.95 Value)

Includes 2"x4", 5"x4" ,7"x5", 8"x8" EZ Frames & EZ Cap Frame.







Features of the appy Japan HCS3-1201 Voyager 12 Needle Commercial Embroidery Machine

  • Happy Japan HCS3-1201 Voyager compact 11" x 17" footprint and light (88lb) weight allows you to operate just about anywhere - in a shop, a spare room in your home, or even take it on the road!
  • Commercial Servo Motor Built In
  • Rotary Style Thread Break and Bobbin Sensors
  • Built In Editing Functions
  • Onscreen Help Function
  • Expandable Hoop Library
  • Auto Maintenance Aids
  • Customizable Shortcuts on screen - Choose the icons you use the most for easy access.
  • Its sewing arm is unrestricted by support legs, allowing embroidery on very large items such as golf bags, suitcases and more
  • Voyager produces excellent embroidery on both flat goods such as shirts, hoodies and jackets, and on ballcaps
  • Large 11.4" x 11.2" sewing field, fast 1000 stitch per minute speed
  • 12 Needles for fast embroidery of multicolored embroidery designs
  • Stitches up to 1,000 stitches per minute on garments and 600 stitches per minute on optional cap frame
  • Narrow Cylinder Arm Style Construction makes hooping garments, bags and more so easy
  • Digital Tensions so you can control every needles tension
  • Uses Popular L Style Bobbin easy to find.  Ken's Sewing Center carries several brands of prewound embroidery Style L bobbins
  • Uses Popuylar DBxK5 Embroidery Needles.  Ken's Sewing Center carries several sizes of these needles all the time.
  • Includes 12.5" x 12.5" Square Embroidery Hoop and 5.5" Round Embroidery Hoop
  • 40 Million Stitch / 999 design capacity built in memory
  • Automatic thread trimmer
  • Thread Break Detection Sensor System
  • Built In Bobbin Winder
  • 10 Inch Color Touch Screen
  • Laser Position Marker
  • Direct PC Connection USB or LAN
  • 12 Built In Fonts in 6 Sizes
  • 100 Built In Designs
  • Thread Stand Holds Home & Commercial Size Embroidery Thread Spools
  • Weighs 88 lbs
  • Base takes up only 10" x 18" of space
  • Can display information in both inches and metrics
  • 100% Made in Japan



Accessories Included with the Happy Japan HCS3-1201 Voyager 12 Needle Commercial Embroidery Machine

1. Thread guide bracket
2. Thread guide pillar (2 pcs)
3. Thread stand
4. Thread stand felt (9 pcs)
5. Thread stand pin (9 pcs)
6. Wave washer (9 pcs)
7. Carriage
8. Frame base
9. Embroidery frame 12.5" x 12.5"
10. Embroidery frame (Round) 5.9"
11. Needle (DB X K5) (10 pcs)
12. Oiler
13. Sewing machine oil
14. USB flash drive
(Instruction manual, Parts list. Happy Link Software)
15. Bobbin (1 pc)
16. Instruction book (USB flash drive)
17. LAN cable
18. Power cord ass’y (A shape will be changed
depending on a destination)
19. Fuse (6A)
20. Off set screw driver
21. #2 (+) Screw driver
22. 2 mm (-) Screw driver
23. 3 mm hexagonal driver
24. 2.5 mm hexagonal driver
25. Brush
27. Clamp filter
28. Stylus
28. USB cable



You will not outgrow this machine anytime soon. Lots of OPTIONAL Accessories available like.

  • Professional Cap System
  • The Voyager 12 Needle Commercial Embroidery Machine performance when embroidering baseball caps deserves a separate mention of its own. Its maximum sewing speed of 850spm on ball caps is much greater than that of any other compact, and it accomplishes this without compromising quality. Unlike other compact multi-needle machines from other brands, Voyager was designed from the outset to embroider caps as well as flat goods. It makes short work of challenging jobs such as 3D puff or the ever popular and stiffer trucker-style hats. Traditionally, these hats are more challenging for most machines. With Voyager 12 Needle Commercial Embroidery Machine, the latest iteration of Voyager, its ultra-slim sewing arm lets you sew higher on caps as well as more effectively on lower profile caps without distorting the design. Finally, among compact machines, it boasts an industry-widest sewing field of 11.4" wide (allowing embroidery on the front and sides in 1 pass) to just under 3" tall. The cap system can embroidery approximately 1/4" from the brim of the cap.





  • One Pont Frame



  • Shoe Clamp
  • Sock Frame
  • Side Clamps
  • Manual Clamp
  • Durkee Cap Frame
  • Durkee EZ Frame System
  • Hoop Master Magnetic Frames
  • Hooptech Hoops
  • Machine Stand

Warranty

10-Year Limited Warranty ( Commercial ) covers Parts & Labor as described below (travel cost not included) for HCR/HCD/HCU/HCA/HCG/HCM products only: Two Years warranty coverage on all Mechanical Parts excluding consumption parts and damage caused by neglect, lack of machine care, maintenance and or improper use. Three Years warranty coverage on all Electronic Parts excluding consumption parts and damage caused by neglect, lack of machine care, maintenance and or improper use. Ten Years warranty coverage on all Drive Belts and Motors excluding consumption parts and damage caused by neglect, lack of machine care, maintenance and or improper use Consumable Items not covered: Needles, trimmers, sewing hooks, thread catch hooks, bobbin cases, bobbins, presser feet, hoops, screws, nuts, bolts, bulbs, cap frames, fuses and filters

More Information
SKU 87106
Part Number HCS3-1201-30TTC
Condition New
